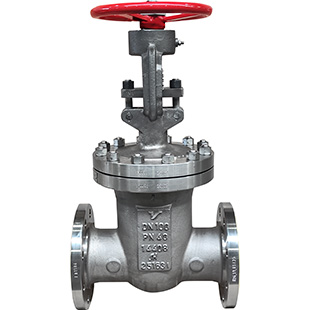

Gate Valves acc. to EN 1984 [GEN]

EN 1984

DN 50 ÷ DN 600

PN 16 ÷ PN 160

Design
  • Casted body and bonnet
  • Bolted bonnet (BB)
  • Rising stem (RS),outside screw and yoke (OS&Y)
  • Wedge may be one-piece flexible or split wedge type
Applications
  • Power plant
  • Chemical
  • Petrochemical
  • Refining
Media

Depending on the valve materials:

  • water
  • steam
  • gas
  • oil and oil derivates
  • other non aggressive media
Pressure and temperature
  • Pressure up to 160 bar
  • Temperature up to 600 °C
Materials
  • Carbon, heat resistant alloy and stainless steels
Advantages
  • Long service life
  • Respect to emission standards
  • Easy handling and maintenance
  • Stem packing replacement in working conditions
Options
  • Electric, hydraulic or pneumatic actuator
  • Position indicator
  • Extended stem
  • Locking device
  • Non rising stem and solid wedge
  • Hole in the wedge (overpressure safety design)
  • Spring loaded stuffing box (SLSB)
  • With equalizing pipe
  • With bypass Valve

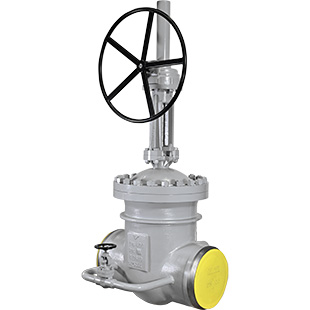

  • With equalizing pipe and bypass valves
  • Flanges and welding ends according to: GOST, DIN, ASME, etc.
  • Other paint finishes are available upon customer’s request
  • Gate valve complete with counter flanges, bolting and gaskets
Testing
  • Every produced gate valve was tested according to EN 12266
